Original Research

Volume 8, December 2019, pages 66-73

Effect of chitosan coatings incorporated with antioxidants of bamboo leaves and potassium sorbate on lipid oxidation and hydrolysis of scallop (Chlamys farreri) during refrigerated storage

Scallop is a commercially important bivalve with nearly 2.8 million tons production in 2017 (FAO, 2017). As a marine edible shellfish with increasing consumption, scallop has a unique and delicious flavor as well as healthy beneficial substances, such as proteins, carbohydrates, and lipids, especially long chain omega-3 polyunsaturated fatty acids (n-3 LC-PUFA) (Copeman and Parrish, 2005). High amounts of moisture, neutral pH, active endogenous enzymes, and abundant nutrients like unsaturated fatty acids (UFA) and proteins make the scallop easily perishable (Ramón et al., 2008). Refrigerated storage is a common preservation method for maintaining and prolonging freshness of aquatic products (Chaijan et al., 2006; Jiménez Ruiz, 2012). However, refrigerated storage can not fully inhibit microbial growth and chemical reactions which cause quality deterioration of aquatic products (Aubourg et al., 1997).

In recent years, the method of coating preservation has been used to improve the quality stability of aquatic products during refrigeration (Jeon et al., 2002; Keshri and Sanyal, 2009). It is a relatively low-cost environmentally friendly technology with several advantages including lack of toxicity, biodegradability, biocompatibility, and inhibition of microbial growth (Breda et al., 2017). The commonly used coating materials include cellulose, starch, chitosan, alginate, carrageenan, pectin, gelatin and wheat gluten, among which chitosan is most widely used due to its antifungal, antimicrobial and antioxidant properties (Dhall, 2013). Many research work has indicated that coating films incorporated with additives could effectively reduce microbes, total volatile basic nitrogen (TVB-N) and other indicators related to the decomposition of proteins in the refrigeration process of aquatic products, thus significantly improving the stability of products and quality retention (Fan et al., 2009; Jeon et al., 2002; Li et al., 2012; Keshri and Sanyal, 2009; Valipour et al., 2016; Pranoto et al., 2005).

Aquatic products contain a large amount of PUFA which makes them susceptible to oxidation (Selmi et al., 2010). Meanwhile, aquatic products are rich in endogenous enzymes such as lipases, which can hydrolyse lipids and then release free fatty acids (FFA) that are highly prone to oxidation (Aubourg et al., 1997). Previous studies have shown that coating films incorporated with additives such as tea polyphenols, α-tocopherol and essential oils can inhibit lipid oxidation during refrigerated storage of aquatic products such as fish (Valipour et al., 2016; Li et al., 2012). Shellfish is rich in PUFA in the form of phospholipids (PL) as well as triacylglycerols (TAG) and lipases; thus its lipid components undergo oxidation and hydrolysis during refrigerated storage, resulting in reduced nutritional value of products (Cabot and Lumb, 1981; Selmi et al., 2010). However, to the best of our knowledge, research on the effects of chitosan coatings incorporated with additives on lipid oxidation and hydrolysis of shellfish during refrigerated storage has not yet been reported.

Thus, the aim of this study is to investigate the effect of chitosan coatings incorporated with additives on lipid oxidation and hydrolysis of shellfish during refrigerated storage. To fulfill this goal, scallop (Chlamys farreri) adductor muscle was coated with chitosan incorporated with antioxidant of bamboo leaves (AOB) and potassium sorbate (PS), respectively, and stored at 4 °C. The proximate composition, total number of colonies, TVB-N, peroxide value (POV), thiobarbituric acid-reactive substances (TBARS), contents of TAG, phosphatidylcholine (PC), phosphatidylethanolamine (PE) as well as FFA, fatty acid composition and lipase activity of the samples during various storage periods were determined. The observations made in this study indicated the importance of the mechanism of lipid oxidation and hydrolysis of shellfish during refrigerated storage and provided means to ensure nutrition quality retention.

Fresh scallops (Chlamys farreri) (average length of each scallop shell of 5–6.5 cm), harvested in the Yellow Sea, were purchased in April 2018 from a local market in Dalian, Liaoning, China. The samples were stored in polystyrene foam boxes with ice and immediately transported to the laboratory.

Chitosan, with 85% degree of deacetylation, was purchased from Sigma Co. (Saint Louis, MO, USA). AOB was purchased from Zhejiang Shengshi Biotechnology Co., Ltd. (Huzhou, Zhejiang, China). PS was purchased from Shanghai Xiangrui Biotechnology Co., LTD (Shanghai, China). High performance liquid chromatography (HPLC) grade methanol, n-hexane and isopropanol were purchased from Spectrum Chemical Mfg. Corp. (Gardena, CA, USA). All other reagents were of analytical grade and purchased from Damao Chemical Reagent Co. (Tianjin, China).

Scallop adductor muscles were manually stripped from the shells and then chitosan coated according to the procedure reported by Valipour et al. (2016) with some modifications. After being washed, samples were randomly assigned into three batches and coated with three solutions: (1) 1.5% chitosan solution (w/v, control group); (2) 1.5% chitosan solution containing 0.2% AOB (w/v, AOB-coated group); (3) 1.5% chitosan solution containing 0.2% PS (w/v, PS-coated group). The coating solutions were prepared by dissolving chitosan in a 0.5% (v/v) acetic acid solution to a final content of 1.5% (w/v). For dissolving the chitosan completely, the solution was left for 1 h under agitation at 40 °C. Then different additives (AOB and PS) were introduced into the chitosan solutions, respectively, and the final coating solutions were homogenised at 10,000 rpm for 3 min. For coating process, samples were immersed in each coating solution for 30 min and then well drained at room temperature. For each group, samples were individually wrapped and stored in a refrigerator at 4 ± 1 °C for 8 days. All samples collections were performed every 4 days and then immediately stored at −80 °C until use.

Ash and crude protein contents were determined according to the AOAC (1990) methods as 938.08 and 981.10, respectively. Total carbohydrates content was determined by the phenol-sulfuric acid method, using glucose as the standard (Dubois et al., 1956). Water content was determined according to the first method of Chinese standard GB 5009.3 (2016).

Total numbers of colonies in the scallop adductor muscle were determined in plate count agar by the spread plate method (AOAC, 2002).

The TVB-N of the scallop adductor muscle was determined according to the second method of Chinese standard GB 5009.228 (2016).

The POV of the scallop lipid was determined according to the first method of Chinese standard GB 5009.227 (2016). The POV was expressed as mmol/kg reactive oxygen in lipid sample.

The TBARS of the scallop adductor muscle were determined according to Khan et al. (2006) with some modifications (Xie et al., 2018) and expressed as mg malondialdehyde (MDA)/kg sample.

A modified version of the Bligh and Dyer (1959) method was employed for total lipid extraction (Zhou et al., 2019). The extracted lipids were sealed under nitrogen and stored at −80 °C until further analysis within 2 weeks.

The determination of FA composition of the scallop lipid was achieved by using an Agilent 7890A GC-5975C MSD (Agilent, Palo Alto, CA, USA) equipped with an HP-5-MS capillary column (30 m × 0.25 mm, 0.25 μm) (Agilent). Preparation of fatty acid methyl esters of the sample was carried out according to a method previously described with slight modifications (Jeong and Lachance, 2001; Yin et al., 2015). One milligram of nonadecanoic acid (C19:0, Sigam-Aldrich, USA) was used as the internal standard for quantitative analysis of individual fatty acids and the results were expressed as mg/g on a dry weight basis.

The TAG and FFA were quantitatively determined according to our previous study (Xie et al., 2018), and the results were expressed as mg/g (on a dry weight basis).

The PC and PE were quantitatively determined as described in a previous study (Zhou et al., 2019), results were expressed as mg/g (on a dry weight basis).

The determination of lipase activity in the scallop adductor muscle was performed using a kit according to the manufacturer’s instructions (Jiancheng Technology Co., Nanjing, China), as described previously (Xie et al., 2018). One unit (U) of lipase activity is defined as 1 nmol of released 4-methylumbelliferone per min at 37 °C.

Each experiment was relicated three times. The statistical analyses were performed by Duncan test using SPSS version 16.0 (SPSS Inc., Chicago, IL, USA). P values of < 0.05 were considered statistically significant.

The fresh scallop adductor muscles with different treatments contained 3.84–3.92% lipid, 79.87–80.79% protein, 17.10–17.58% total carbohydrates and 4.48–4.69% ash (on a dry weight basis) before refrigerated storage. During the 8 days of refrigerated storage, the protein contents of the scallop adductor muscles decreased slightly, while the ash contents increased marginally, but the corresponding values for other components remained unchanged (Figure 1). Arannilewa et al. (2006) also reported a decreasing trend of protein content and a slightly rising trend in the ash content of tilapia fish (Sarotherodun galiaenus) during the frozen storage. This may be attributed to the action of endogenous enzymes and bacteria which cause the decomposition of proteins in food during storage (Arannilewa et al., 2006).

Click for large image

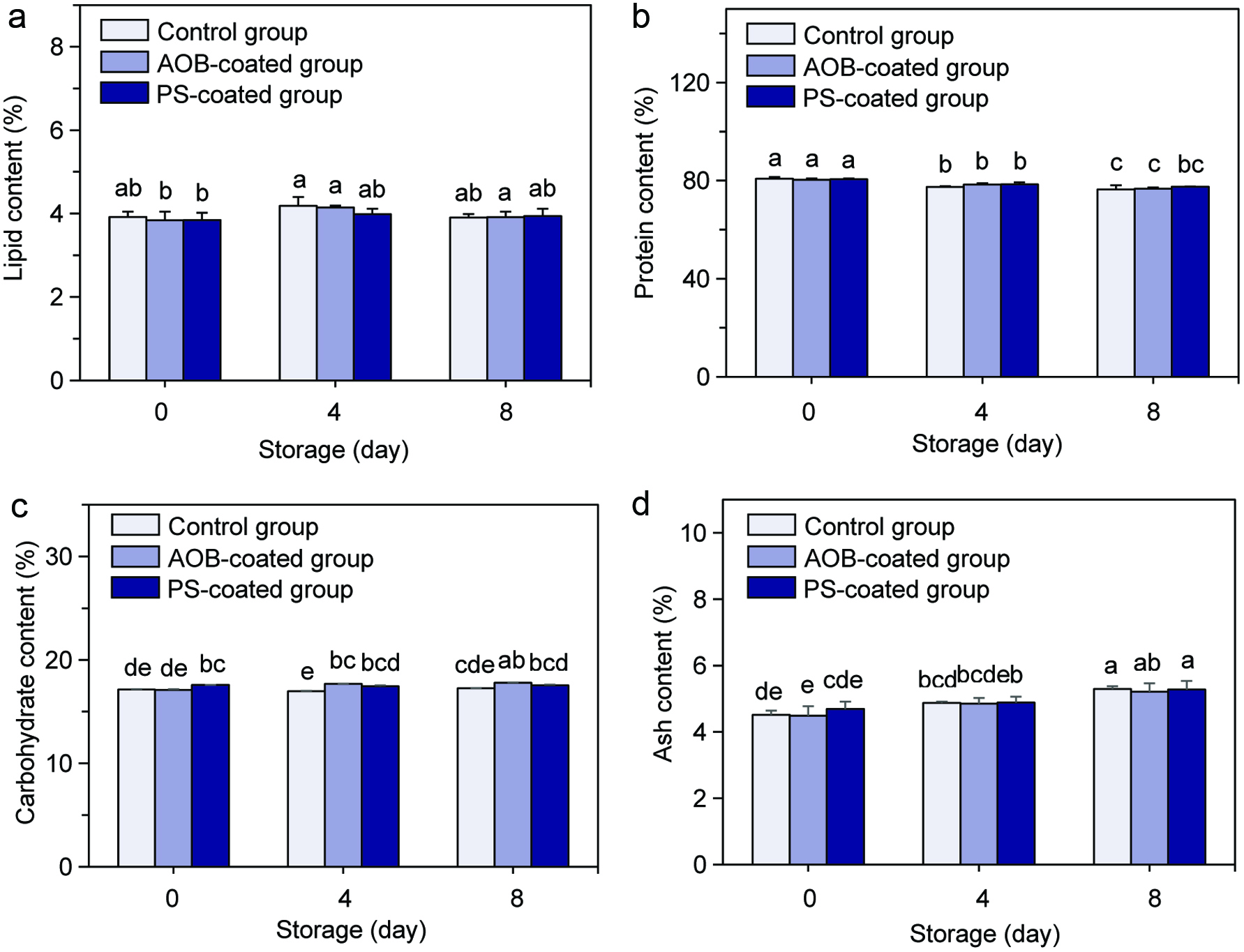

Figure 1. Changes in lipid (a), protein (b), carbohydrate (c) and ash (d) contents of the control scallop adductor muscle, AOB-coated scallop adductor muscle and PS-coated scallop adductor muscle during refrigerated storage. Values in the different column with different lowercase letters (a–e) are significantly different at P < 0.05.

The total numbers of colonies in the scallop adductor muscles with all treatmentsincreased time-dependently during refrigerated storage (Figure 2a). The initial values of colonies of the control, AOB-coated and PS-coated adductor muscles were 3.26 ± 0.17, 3.24 ± 0.15 and 3.22 ± 0.22 lg(CFU/g), respectively, which increased to 6.72 ± 0.10, 5.22 ± 0.17 and 5.14 ± 0.32 lg(CFU/g), respectively, after 8 days of refrigerated storage, and increased by 2.06-, 1.61- and 1.60-fold, respectively. By contrast, the AOB- and PS-coated adductor muscles both showed significantly lower values of colonies than that of the control adductor muscle during the refrigerated storage (P < 0.05).

Click for large image

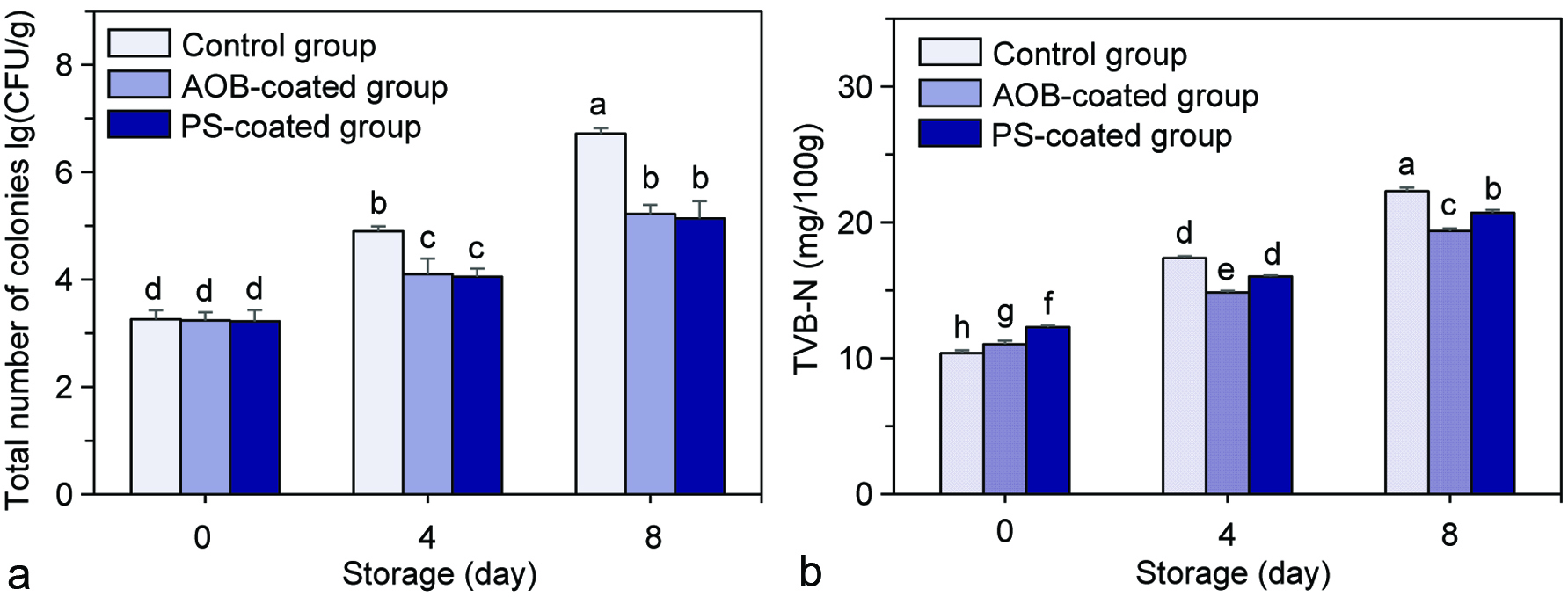

Figure 2. Changes in total numbers of colonies (a) and TVB-N (b) of the control scallop adductor muscle, AOB-coated scallop adductor muscle and PS-coated scallop adductor muscle during refrigerated storage. Values of different groups with different lowercase letters (a–h) are significantly different at P < 0.05.

The microbial spoilage of aquatic products is one of the important reasons for the large amount of food waste during storage (Chaillou et al., 2015). Therefore, inhibition of the growth of bacterial communities is a crucial means to retard the spoilage of aquatic products during storage. Previous studies have also indicated that chitosan coatings incorporated with polyphenols and preservatives could significantly inhibit the growth of bacterial population and retard food spoilage (Valipour et al., 2016; Li et al., 2012; Pranoto et al., 2005). For example, Li et al. (2012) reported that large yellow croaker (Pseudosciaena crocea) coated with chitosan incorporated with tea polyphenol had significantly lower microorganisms counts than control group during refrigerated storage. Pranoto et al. (2005) reported that chitosan coating incorporated with PS increased the resistance of several kinds of food pathogen bacteria. PS is a common antibacterial preservative used by the food industry. The polyphenols have been proven to possess antibacterial activity by affecting the osmotic pressure to alter the cell morphology, thereby destroying the plasma membrane and causing the leakage of cellular components (Perumalla and Hettiarachchy, 2011). Due to the migration of the additives from coating materials to the surface of the products (Sangsuwan et al., 2015), the additives could interact with the bacteria in the adductor muscle during refrigerated storage to achieve their antibacterial activity.

The values of TVB-N of the scallop adductor muscles with different treatments all increased gradually during the course of refrigerated (Figure 2b). The initial values of TVB-N of the control, AOB-coated and PS-coated adductor muscles were 10.38 ± 0.20, 11.03 ± 0.26 and 12.28 ± 0.13 mg/100 g, respectively, which increased to 22.30 ± 0.26, 19.37 ± 0.19 and 20.71 ± 0.20 mg/100 g, respectively, after 8 days of refrigerated storage, and increased by 2.15-, 1.76- and 1.69-fold, respectively. By contrast, the AOB- and PS-coated adductor muscles both had significantly lower values of TVB-N than that of the control adductor muscle during refrigerated storage (P < 0.05).

Total volatile basic nitrogen are alkaline nitrogenous substances such as ammonia and amines produced by the decomposition of amino acids during the process of food spoilage under the action of enzymes and bacteria (Jiménez Ruiz et al., 2012). Therefore, TVB-N is widely used as an indicator to represent the stage of deterioration or loss of freshness of aquatic products (Jiménez Ruiz et al., 2012). Previous studies have also indicated that edible coatings incorporated with polyphenols and preservatives could significantly inhibit the increase of TVB-N in food stuffs during storage (Jeon et al., 2002; Li et al., 2012; Keshri and Sanyal, 2009). For example, Li et al. (2012) reported that chitosan coating incorporated with tea polyphenol could more effectively maintain the TVB-N values of large yellow croaker (Pseudosciaena crocea). In addition, Keshri and Sanyal (2009) reported that alginate coatings incorporated with preservatives (sodium ascorbate, citric acid and glycerol) significantly retarded the increase of TVB-N in meat patties. Spoilage bacteria and endogenous enzymes in food stuffs play important roles in increasing TVB-N (Fan et al., 2009). Therefore, the inhibitory effects of the two types of chitosan coatings on TVB-N of the scallop adductor muscle during refrigerated storage may be attributed to their antibacterial activities.

The indicators of lipid oxidation, including POV (Figure 3a) and TBARS (Figure 3b), of the scallop adductor muscles with different treatments all increased time-dependently during refrigerated storage. The initial POV of lipids from the control, AOB-coated and PS-coated adductor muscles were 8.38 ± 0.29, 7.77 ± 0.44 and 8.39 ± 1.05 mmol/kg, respectively, which increased to 17.18 ± 0.41, 9.63 ± 0.73 and 10.52 ± 0.35 mmol/kg, respectively, after 8 days of refrigerated storage, and increased by 2.05-, 1.24- and 1.25-fold, respectively. Meanwhile, the initial values of TBARS for the three aforementioned adductor muscles were 1.16 ± 0.01, 1.14 ± 0.03 and 1.17 ± 0.02 mg MDA/kg, respectively, which increased to 2.23 ± 0.05, 1.32 ± 0.02 and 1.53 ± 0.03 mg MDA/kg, respectively, after 8 days of refrigerated storage, and increased by 1.92-, 1.16- and 1.31-fold, respectively. Obviously, chitosan coatings incorporated with AOB and PS significantly reduced the increase of POV and TBARS in the adductor muscles during refrigerated storage.

Click for large image

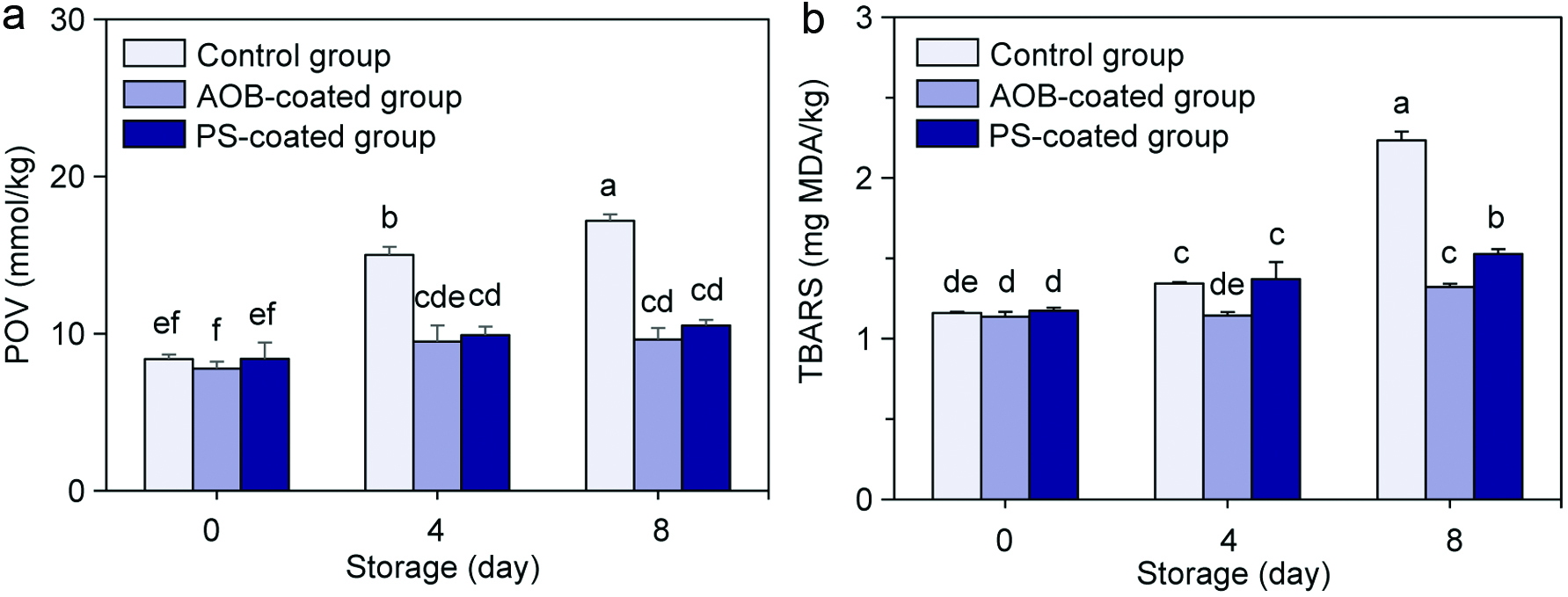

Figure 3. Changes in POV (a) and TBARS (b) of the control scallop adductor muscle, AOB-coated scallop adductor muscle and PS-coated scallop adductor muscle during refrigerated storage. Values of different groups with different lowercase letters (a–f) are significantly different at P < 0.05.

The fresh adductor muscles before refrigerated storage contained 7.55–7.61 mg/g PUFAs, 1.34–1.35 mg/g monounsaturated fatty acids (MUFA) and 4.08–4.10 mg/g saturated fatty acids (SFA) (dry basis) (Table 1). Among PUFA, eicosapentaenoic acid (EPA, C20:5 n-3, 2.94–2.99 mg/g) and docosahexaenoic acid (DHA, C22:6 n-3, 3.87–3.92 mg/g) were dominant. After refrigerated storage, the contents of MUFA, PUFA, EPA and DHA in all scallop adductor muscles were significantly reduced. For the control adductor muscle, those lipid components decreased by 41.79, 46.91, 47.46 and 45.50%, respectively. While the corresponding values were 32.09, 35.93, 36.45 and 32.73%, respectively, for the AOB-coated adductor muscle, and were 36.30, 36.68, 34.01, 37.50%, respectively, for the PS-coated adductor muscle. By contrast, chitosan coatings incorporated with AOB and PS could significantly prevent the oxidation of PUFA, especially EPA and DHA, in the adductor muscles during refrigerated storage.

Click to view

Table 1. Changes in contents of fatty acids (mg/g of dry basis) of the control scallop adductor muscle, AOB-coated scallop adductor muscle and PS-coated scallop adductor muscle during refrigerated storage

Lipid oxidation is a major cause for quality deterioration of aquatic products during refrigerated storage (Jeon et al., 2002). The mechanism of lipid oxidation occurring in refrigerated aquatic products is mainly autoxidation (Sun et al., 2011). The UFA molecules generate lipid alkyl radicals by losing a hydrogen atom and then form peroxyl radical by reacting quickly with oxygen. While peroxyl radical can form hydroperoxide and another lipid alkyl free radical by abstracting another hydrogen from an unsaturated lipid, and then propagate the free radical chain reaction (Johnson and Decker, 2015; Nawar, 1996). In this process, the primary oxidation products (hydroperoxides) are unstable and can be easily decomposed into various secondary oxidation products such as aldehydes, alcohols, ketones, hydrocarbons, volatile organic acids, and epoxy compounds (Kindleysides et al., 2012). In this study, the increase of primary oxidation products (POV) and secondary oxidation products (TBARS), as well as the decrease of PUFA in the adductor muscles during refrigerated storage were significantly inhibited by chitosan coatings incorporated with AOB and PS, indicating the antioxidant effects of the coatings.

Previous studies have also indicated that chitosan coatings incorporated with polyphenols could significantly inhibit lipid oxidation (Valipour et al., 2016; Li et al., 2012). For example, Li et al. (2012) reported that large yellow croaker (Pseudosciaena crocea) coated with chitosan incorporated with tea polyphenols had significantly lower values of POV and TBARS during cold storage. AOB used in this study was a commercial polyphenolic antioxidant which is listed in the Chinese standard GB 2760 (2014). Its antioxidant activity is provided by supplying hydroxyl hydrogen to lipid peroxyl radicals and could also act as inhibitor of lipid oxidation by removing singlet oxygen molecules (Brewer, 2011). PS has also been proven to possess antioxidant activity by influencing the electroreduction of oxygen as well as its interaction with reactive oxygen species (Korotkova et al., 2006). Therefore, the inhibitory effects of the two types of chitosan coatings on lipid oxidation in scallop adductor muscle during refrigerated storage may be due to their antioxidant activities.

During refrigerated storage, the contents of TAG (Figure 4a), PC (Figure 4c) and PE (Figure 4d) decreased time-dependently, while the content of FFA (Figure 4b) increased time-dependently. The initial values for the four aforementioned lipid components in the adductor muscles before refrigerated storage were 10.56–11.34, 6.45–6.48, 2.14–2.18 and 6.20–6.38 mg/g (dry basis), respectively. After 8 days of refrigerated storage, the contents of TAG, PC and PE in the control adductor muscle decreased by 19.89, 19.14 and 19.14%, respectively, and the content of FFA increased by 1.63-fold. At the same time, the corresponding values for the AOB-coated adductor muscle were 8.05, 14.06, 14.06% and 1.21-fold, respectively, while those values for the PS-coated adductor muscle were 9.05, 15.81, 15.81% and 1.19-fold, respectively. By contrast, chitosan coatings incorporated with AOB and PS significantly reduced the decline of TAG, PC and PE and the enhancement of FFA in the adductor muscles during refrigerated storage. Meanwhile, the activities of lipase in the adductor muscles all increased gradually along with the storage time (Figure 5). The initial lipase activities of the control adductor muscle, AOB-coated adductor muscle and PS-coated adductor muscle before refrigerated storage were 129.3 ± 5.17, 121.54 ± 5.17 and 102.58 ± 9.08 U/g, respectively, and the corresponding values rose to 359.46 ± 14.40, 258.60 ± 7.76 and 205.16 ± 18.16 U/g, respectively, after 8 days of refrigerated storage, and increased by 2.78-, 2.13- and 2.00-fold, respectively.

Click for large image

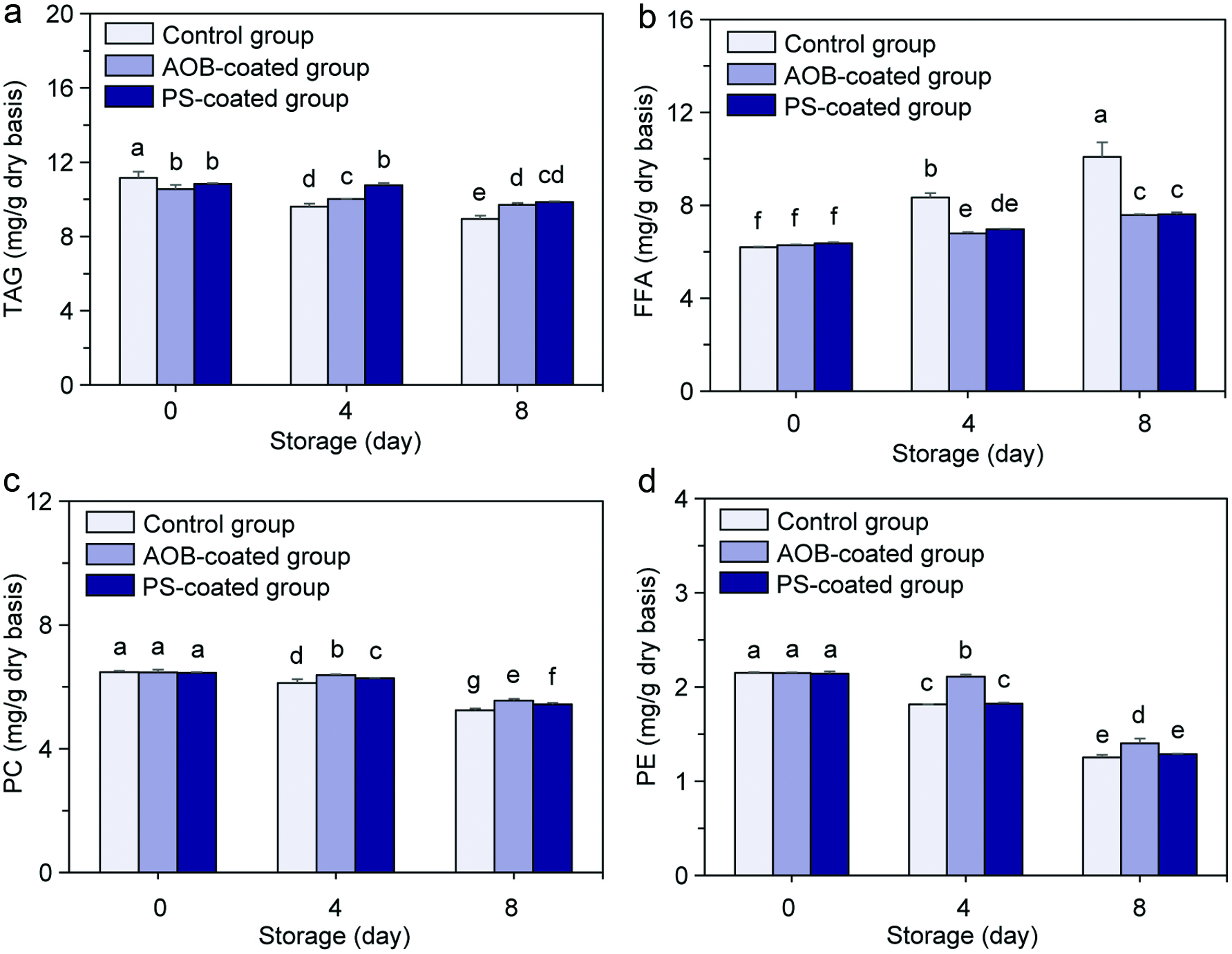

Figure 4. Changes in contents of TAG (a), FFA (b), PC (c) and PE (d) in the control scallop adductor muscle, AOB-coated scallop adductor muscle and PS-coated scallop adductor muscle during refrigerated storage. Values of different groups with different lowercase letters (a–g) are significantly different at P < 0.05.

Click for large image

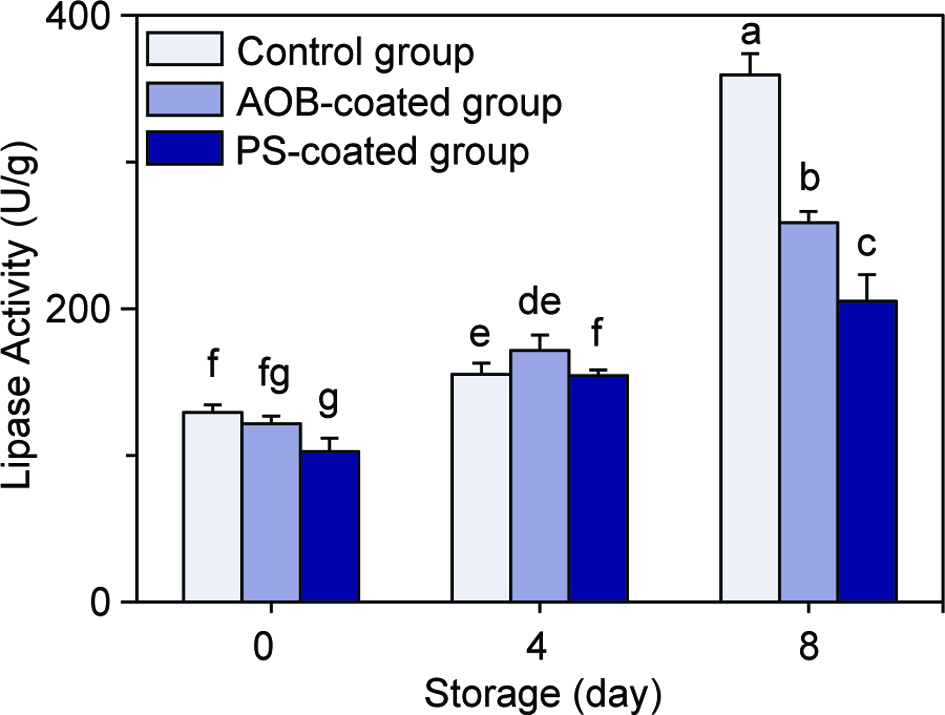

Figure 5. Changes in lipase activity of the control scallop adductor muscle, AOB-coated scallop adductor muscle and PS-coated scallop adductor muscle during refrigerated storage. Values of different groups with different lowercase letters (a–g) are significantly different at P < 0.05.

The decrease of TAG, PC and PE contents and the increase of FFA content in the adductor muscles indicated the occurrence of lipid hydrolysis during refrigerated storage. A previous study also reported the decrease in the contents of TAG and PL as well as an increase in the content of FFA in sardine (Sardinella gibbosa) muscle during iced storage due to the hydrolysis of lipids (Chaijan et al., 2006). The presence of lipase in adductor muscle and the increase of its activity during refrigerated storage suggested that the enzyme could conduce to the hydrolysis of lipids. Cabot and Lumb (1981) also proposed the important role of lipase in TAG hydrolysis at low temperatures. Our results indicated that chitosan coatings incorporated with AOB and PS inhibited the growth of lipase activity, thereby inhibiting lipid hydrolysis. The lipase of aquatic products includes both endogenous enzymes and exogenous enzymes produced by spoilage organisms such as Bacillus, Pseudomonas and Burkholderia (Gupta et al., 2004). In this study, chitosan coatings incorporated with AOB and PS significantly inhibit bacterial proliferation, which may be the reason for the reduction of lipase activity and the consequent inhibition of lipid hydrolysis.

Nutrient loss, caused by lipid oxidation and hydrolysis, occurs in the adductor muscle of scallop during refrigerated storage. Our results indicated that chitosan coatings incorporated with AOB and PS could significantly inhibit the increases in POV, TBARS, and FFA contents as well as the decreases in contents of TAG, PC, PE and PUFA especially EPA and DHA in the scallop adductor muscle during refrigerated storage. Thus, chitosan coatings with added components could retard nutrient loss by inhibiting lipid oxidation and hydrolysis.

Acknowledgments

This work was financially supported by “National Key R&D Program of China (2018YFD0901000)”, “National Natural Science Foundation of China (31871759; U1808203)”, “Project of Distinguished Professor of Liaoning Province, China (2015-153)”, and “Dalian Science and Technology Innovation Fund Project (2019J11CY005)”.

Conflict of interest

The authors declare that they have no conflict of interest.
